Exhaust pipes, O & K Axleguards, Coupling/Connecting Rods,and Diesel loco coupling/bufferbeams.
See "How to order" in left Menu for ordering information & our address.
Parts on this page are 3D printed in ABS (usually grey, or black).
ND42 Small Bonnet-mounted Exhaust Pipe £3.75 (7/8" £5.65)
Approx. 42mm long x 9mm diameter. Supplied as two halves.
ND43 Large Vertical Exhaust Pipe £4.60 (7/8" £6.90)
Approx. 102mm x 12·5mm diameter. Supplied as two halves.

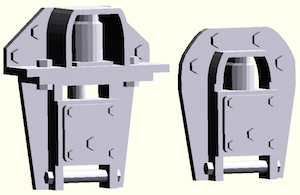

ND44 O & K Loco Axleguards – four £3.75 (7/8" £5.65)
Used on RL1 & RL2 locos. Two large & two small.
ND45 O & K Axleguards – four £3.75 (7/8" £5.65)
Used on S5 locos. Four small.
Coupling/Connecting rods for 0-4-0 and 0-6-0 locos
Printed to suit your loco wheelbase, up to 100mm long (axle centres) for 0-4-0s, and up to 160mm long for 0-6-0s.
With stainless steel hex-head bolts: coupling rods have four or six bolts, connecting rods have two bolts.
Includes plastic bushes to protect the rods from the bolt threads.
As used on DS12/14 locos. 1 slot for link (not supplied). Approx. 27·5mm wide, 13·5mm high.
ND98 Ruston-type Grille £2.80 (7/8" £4.20)
As used on LBT locos.
Approx. 32mm wide, 24mm high.
Other sizes can be supplied to order – price may vary.
ND99 Rounded Rectangle Grille £2.80 (7/8" £4.20)
Generic grille, for freelance locos.
Approx. 32mm wide, 24mm high.
Other sizes can be supplied to order – price may vary.
ND100 Steam Loco Injector £3.75 (7/8" £5.65)
Based on GWR type. Can also be supplied reversed, to fit as a pair (Price is each).
Approx. 50mm wide, 25.6mm high.
Other sizes can be supplied to order – price may vary.
Generic clack valve (Cosmetic!). Rear ring to go against the boiler, is a separate part.
Approx. 41.5mm high, 7mm high.
Other sizes can be supplied to order – price may vary.
ND102 Broad Gauge Chimney Top – "Trumpet" £3.50
Suits 9mm chimney tube. Based on early broad gauge loco chimney
Approx. 22mm diameter, 10mm high.
Other sizes can be supplied to order – price may vary.
ND103 Broad Gauge Chimney Top – "top ring" £3.50
Suits 9mm chimney tube. Based on early broad gauge loco chimney with top ring.
Approx. 19mm wide, 11.8mm high.
Other sizes can be supplied to order – price may vary.
ND104 Loco Air Tank Ends – pair £2.50
Flattened-hemisphere ends for diesel loco air tanks.
Suits 11 o.d./9mm i.d. tube. Approx. 11mm diameter, 3.75mm high.
Other sizes can be supplied to order – price may vary.
ND105 Lister Axleguards & Brakeshoes £6.00
Based on Lister "Type R" Rail/Autotruck.
Set of 4 axleguards and 4 brakeshoes for one loco. Axleguards are approx. 27mm wide, 25mm high. Tiebar is for 2' 6" wheelbase (40mm): other lengths can be supplied. These locos had 12" diameter wheels
Price for 7/8" scale £9.00, or for 1" scale £11.00.

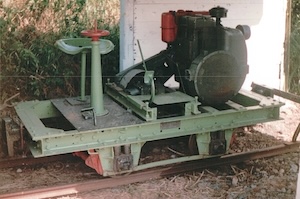

A Lister loco at Washford on the West Somerset Railway in the 1990s – part of the "Peat Railway" exhibits ↓
ND106 Loco Spectacle Ring with Coal Bars – two £2.50 (7/8" £3.75)
ND107 Loco Spectacle Ring – two £2.50 (7/8" £3.75)
Ring with bolt heads to fit round cab window glazing. ND106 has coal rails for locos with a bunker.
Approx. 20mm diameter.
Other sizes can be supplied to order – price may vary.
ND108 Loco Access Doors (raised frame) – one £4.50 (7/8" £6.80)
The frame is approx. 5mm deep, 40mm wide and 50mm high.
Doors are separate, which could be made to be removable for concealing a charging socket, for instance.
ND109 Loco Access Doors (flat frame) – one £3.50 (7/8" £5.20)
The frame is approx. 44mm wide and 52mm high.
Doors are separate, which could be made to be removable.
ND108 and ND109 are based on the Vale of Rheidol Railway's No.10 diesel loco.
